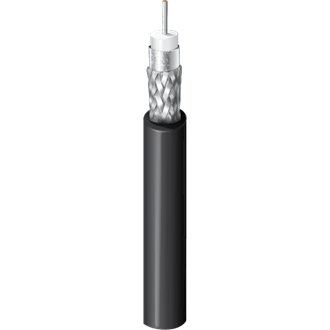

Belden 4694R Coaxial Video Cable

Loading...

Belden 4694R Coaxial Video Cable

Categories: , , ,
Quantity

5000, 10000, 100000
Colour

White, Black, Natural, Neon Pink, Neon Green, Neon Orange, Neon Yellow, Neon Blue, Red, Light Blue

Shop with confidence

Description Specifications Product Overview Suitable Applications Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p Construction Details RG Type 6 Conductor AWG Stranding Nom. Diameter Material 18 Solid 0.040 in SC – Silvered Copper Insulation Material Nom. Diameter PE – Polyethylene (Foam) 0.180 in Outer Shield Material Layer Outer Shield Type Material Material Trade Name Coverage 1 Tape Tri-Laminate (Alum Poly Alum) Duobond® II 100% 2 Braid Tinned Copper (TC) 95% Outer Jacket Material Material Nom. Diameter PVC – Polyvinyl Chloride 0.274 in Electrical Characteristics Return Loss Frequency [MHz] Min. Return Loss [dB] 5 – 1600 MHz 23 dB 1600 – 4500 MHz 21 dB 4500 – 12000 MHz 15 dB Attenuation Frequency Nom. Attenuation [dB/100ft] 1 MHz 0.23 dB/100ft 3.58 MHz 0.44 dB/100ft 5 MHz 0.51 dB/100ft 6 MHz 0.56 dB/100ft 7 MHz 0.59 dB/100ft 10 MHz 0.70 dB/100ft 12 MHz 0.75 dB/100ft 25 MHz 1.04 dB/100ft 55 MHz 1.45 dB/100ft 67.5 MHz 1.58 dB/100ft 71.5 MHz 1.62 dB/100ft 88.5 MHz 1.78 dB/100ft 100 MHz 1.89 dB/100ft 135 MHz 2.10 dB/100ft 143 MHz 2.16 dB/100ft 180 MHz 2.44 dB/100ft 270 MHz 2.97 dB/100ft 360 MHz 3.45 dB/100ft 540 MHz 4.30 dB/100ft 720 MHz 5.00 dB/100ft 750 MHz 5.10 dB/100ft 1000 MHz 5.90 dB/100ft 1500 MHz 7.30 dB/100ft 2000 MHz 8.50 dB/100ft 2250 MHz 9.10 dB/100ft 3000 MHz 10.6 dB/100ft 4500 MHz 13.2 dB/100ft 6000 MHz 15.5 dB/100ft 12000 MHz 23.0 dB/100ft Electricals Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Impedence Nom. Velocity 6.4 Ohm/1000ft 2.8 Ohm/1000ft 15.9 pF/ft 75 Ohm 85% Voltage UL Voltage Rating 300 V (CMR, CMG) Mechanical Characteristics Temperature UL Rating Operating 60°C -20°C to 75°C Bend Radius Installation Min. 2.75 in Bulk Cable Weight 41 lbs/1000ft Max. Pull Tension 69 lbs Standards and Compliance Environmental Suitability Indoor – Riser, Indoor, UV Resistance Sustainability CA Prop 65 Flammability / Fire Resistance UL1666 Vertical Shaft, FT4 NEC / UL Compliance CMR CEC / C(UL) Compliance CMG European Directive Compliance EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) APAC Compliance China RoHS II (GB/T 26572-2011) Plenum Number 4694P
