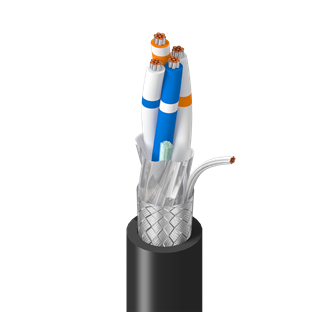

Belden 3107A Multi-Pair Cable, industrial RS-485

Loading...

Belden 3107A Multi-Pair Cable, industrial RS-485

Categories: , , ,
Quantity

5000, 10000, 100000
Colour

White, Black, Natural, Neon Pink, Neon Green, Neon Orange, Neon Yellow, Neon Blue, Red, Light Blue

Shop with confidence

Description Specifications Product Overview Suitable Applications harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. Construction Details Conductor Element Number of Element AWG Stranding Material Pair(s) 2 22 7×30 TC – Tinned Copper Insulation Element Material Thickness Color Code Notes Pair(s) PE – Polyethylene (Foam) 0.025 in White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe HDPE Outer Shield Material Shield Type Material Coverage Drainwire Type Tape Braid Bi-Laminate (Alum Poly) Tinned Copper (TC) 100% 65% 22 AWG (7×30) TC Outer Jacket Material Material Thickness Nom. Diameter PVC – Polyvinyl Chloride 0.053 in 0.350 in Cable Diameter (Nominal) 0.350 in Electrical Characteristics Electricals Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds Shield) Characteristic Impedence Nom. Velocity of Prop. Max. Current Pair(s) 14.7 Ohm/1000ft 11 pF/ft 20.9 pF/ft 120 Ohm 78% 2.7 Amps per Conductor at 25ºC Nom. Outer Shield DCR 2.95 Ohm/1000ft High Frequency (Nominal/Typical) Element Frequency [MHz] Nom. Insertion Loss Pair(s) 1 MHz 0.5 dB/100ft Voltage UL Voltage Rating 300 V (CM, PLTC) Mechanical Characteristics Temperature UL Rating Operating 60°C -20°C to 60°C Bend Radius Stationary Min. Installation Min. 3.5 in 3.5 in Max. Pull Tension 80 lbs Bulk Cable Weight 58 lbs/1000ft Standards and Compliance Environmental Suitability Indoor, Sunlight Resistance, Oil Resistance Flammability / Fire Resistance UL1685 UL Loading, FT1, IEC 60332-1-2 NEC / UL Compliance Article 725, Article 800, CM, PLTC CEC / C(UL) Compliance CM CPR Euroclass Eca European Directive Compliance EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) APAC Compliance China RoHS II (GB/T 26572-2011)
