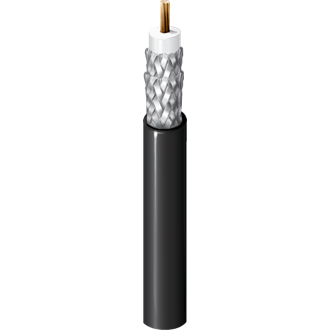

Belden 1694F Digital Video Coaxial Cable

Loading...

Belden 1694F Digital Video Coaxial Cable

Categories: , , ,
Quantity

5000, 10000, 100000
Colour

White, Black, Natural, Neon Pink, Neon Green, Neon Orange, Neon Yellow, Neon Blue, Red, Light Blue

Shop with confidence

Description Specifications Product Overview Suitable Applications Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p Construction Details RG Type 6 Conductor AWG Stranding Nom. Diameter Material 19 7×27 0.041 in BC – Bare Copper Insulation Material Nom. Diameter PE – Polyethylene (Foam) 0.180 in Outer Shield Material Layer Outer Shield Type Material Coverage 1 Braid Tinned Copper (TC) 95% 2 Braid Tinned Copper (TC) 95% Outer Jacket Material Material Nom. Diameter PVC – Polyvinyl Chloride 0.276 in Electrical Characteristics Return Loss Frequency [MHz] Min. Return Loss [dB] 5 – 850 MHz 20 dB 850 – 6000 MHz 15 dB Attenuation Frequency Nom. Attenuation [dB/100ft] 1 MHz 0.24 dB/100ft 3.58 MHz 0.45 dB/100ft 5 MHz 0.54 dB/100ft 6 MHz 0.55 dB/100ft 7 MHz 0.62 dB/100ft 10 MHz 0.72 dB/100ft 12 MHz 0.83 dB/100ft 25 MHz 1.18 dB/100ft 55 MHz 1.76 dB/100ft 67.5 MHz 1.9 dB/100ft 71.5 MHz 2.0 dB/100ft 88.5 MHz 2.2 dB/100ft 100 MHz 2.4 dB/100ft 135 MHz 2.8 dB/100ft 143 MHz 2.9 dB/100ft 180 MHz 3.3 dB/100ft 270 MHz 4.0 dB/100ft 360 MHz 4.7 dB/100ft 540 MHz 5.9 dB/100ft 720 MHz 6.9 dB/100ft 750 MHz 7.1 dB/100ft 1000 MHz 8.4 dB/100ft 1500 MHz 10.6 dB/100ft 2000 MHz 12.5 dB/100ft 2250 MHz 13.4 dB/100ft 3000 MHz 15.9 dB/100ft 4500 MHz 20.6 dB/100ft 6000 MHz 28.7 dB/100ft Electricals Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Impedence Nom. Velocity 8.5 Ohm/1000ft 1.7 Ohm/1000ft 17.0 pF/ft 75 Ohm 80% Voltage UL Voltage Rating 300 V (CM) Mechanical Characteristics Temperature UL Rating Operating 60°C -35°C to 75°C Bend Radius Installation Min. 2.75 in Bulk Cable Weight 50 lbs/1000ft Max. Pull Tension 90 lbs Standards and Compliance Environmental Suitability Indoor (Not Riser or Plenum), Indoor Sustainability CA Prop 65 Flammability / Fire Resistance UL 1685 – UL Loading NEC / UL Compliance CM CEC / C(UL) Compliance CM European Directive Compliance EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) APAC Compliance China RoHS II (GB/T 26572-2011)
