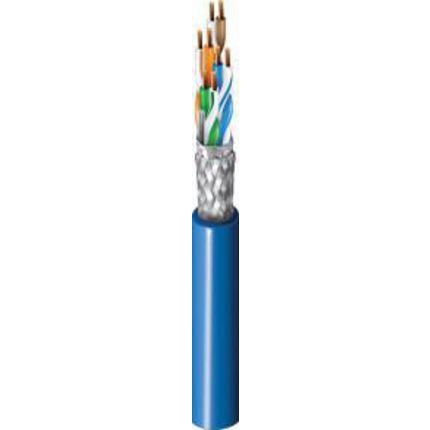

Belden 1685ENH Cat 6A ethernet Cable

Loading...

Belden 1685ENH Cat 6A ethernet Cable

Categories: , , ,
Quantity

5000, 10000, 100000
Colour

White, Black, Natural, Neon Pink, Neon Green, Neon Orange, Neon Yellow, Neon Blue, Red, Light Blue

Shop with confidence

Description Specifications Product Overview Suitable Applications Horizontal and building backbone cable; Support current and future Category 6A and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM Physical Characteristics (Overall) Conductor Element AWG Stranding Material No. of Pairs Individual shielded pair 23 Solid BC – Bare Copper 4 Conductor Count: 8 Total Number of Pairs: 4 Insulation Element Type Material Nominal Diameter Individual shielded pair Dielectric PE – Polyethylene (Foam) 1.32 mm Bonded-Pair: No Color Chart Number Color Pair 1 White & Blue Pair 2 White & Orange Pair 3 White & Green Pair 4 White & Brown Inner Shield Material Element Type Material Coverage Individual shielded pair Tape Bi-Laminate (Alum Poly) 100% Table Notes: Aluminum facing outside Cabling Description 4 pairs twisted together Outer Shield Material Type Material Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D Drainwire Position Tape Bi-Laminate (Alum Poly) 100% TC – Tinned Copper 26 Solid Between inner and outer foil Table Notes: Aluminum facing outside Outer Jacket Material Material Nominal Diameter Diameter /- Tolerance Ripcord LSZH – Low Smoke Zero Halogen (Flame Retardant) 7.1 mm 0.3 mm Yes Construction and Dimensions Min Elongation at Breakof Conductors: 10 % Min Elongation at Breakof Insulation: 100 % Min Elongation at Breakof Jacket: 100 % Min Tensile Strength of Jacket: 9 MPa Electrical Characteristics Conductor DCR Max. Conductor DCR Max DCR Unbalanced Between Pairs [%] Max. DCR Unbalanced Within Pair [%] 95 Ohm/km 4 % 2 % Capacitance Max. Capacitance Unbalance Max. Mutual Capacitance 1,600 pF/km 56 pF/m Impedance Nominal Characteristic Impedance 100 Ohm Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%] 25 ns/100m 77 % High Freq Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. PSANEXT Min. PSAACRF Min. TCL [dB] Min. TCL [dB] 1 MHz 2.1 dB/100m 75.3 dB 72.3 dB/td> 73.2 dB 70.2 dB 68 dB 65 dB 20 dB 67 dB 67 dB 40 dB 35 dB 4 MHz 3.8 dB/100m 66.3 dB 63.3 dB/td> 62.5 dB 59.5 dB 56 dB 53 dB 23 dB 67 dB 66.2 dB 34 dB 23 dB 10 MHz 5.9 dB/100m 60.3 dB 57.3 dB/td> 54.2 dB 51.2 dB 48 dB 45 dB 25 dB 67 dB 58.2 dB 30 dB 15 dB 16 MHz 7.5 dB/100m 57.2 dB/td> 54.2 dB 49.8 dB 46.8 dB 43.9 dB 40.9 dB 25 dB 67 dB 54.1 dB 28 dB 10.9 dB 31.2 MHz 10.5 dB/100m 52.9 dB 49.9 dB/td> 42.4 dB 39.4 dB 38.1 dB 35.1 dB 23.6 dB 67 dB 48.3 dB 25.1 dB 5.1 dB 62.5 MHz 15 dB/100m 48.4 dB 45.4 dB/td> 33.4 dB 30.4 dB 32.1 dB 29.1 dB 21.5 dB 65.6 dB 42.3 dB 22 dB 100 MHz 19.1 dB/100m 45.3 dB 42.3 dB/td> 26.2 dB 23.2 dB 28 dB 25 dB 20.1 dB 62.5 dB 38.2 dB 20 dB 125 MHz 21.5 dB/100m 43.8 dB 40.8 dB/td> 22.3 dB 19.3 dB 26.1 dB 23.1 dB 19.4 dB 61 dB 36.3 dB 19 dB 200 MHz 27.6 dB/100m 40.8 dB 37.8 dB 13.2 dB 10.2 dB 22 dB 19 dB 18 dB 58 dB 32.2 dB 17 dB 250 MHz 31.1 dB/100m 39.3 dB 36.3 dB 8.3 dB 5.3 dB 20 dB 17 dB 17.3 dB 56.5 dB 30.2 dB 16 dB 300 MHz 34.3 dB/100m 38.1 dB 35.1 dB 3.9 dB 0.9 dB 18.5 dB 15.5 dB 17.3 dB 55.3 dB 28.7 dB 500 MHz 45.3 dB/100m 34.8 dB 31.8 dB -10.4 dB -13.4 dB 14 dB 11 dB 17.3 dB 52 dB 24.2 dB 625 MHz 51.2 dB/100m 33.4 dB 30.4 dB -17.8 dB -20.8 dB 12.1 dB 9.1 dB 17.3 dB 50.6 dB 22.3 dB Table Notes: Limits below 4 MHz and at 625 MHz are for information only. Reference standard: IEC 61156-5 General Electrical Parameters Notes: Reference standard: ISO/IEC 61156-5 Coupling Attenuation Class: Type Ib Segregation class according EN50174-2: c Transfer Impedance Frequency [MHz] Transfer Impedance 1 Mhz Max. 50 mOhm/m 10 Mhz Max. 100 mOhm/m 30 Mhz Max. 200 mOhm/m 100 Mhz Max. 1000 mOhm/m Transfer Impedance Class: Grade 2 Current Max. Recommended Current [A] 1.5 Amps per Conductor Voltage Voltage Rating [V] 72 V Temperature Range Installation Temp Range: 0°C To 50°C Operating Temp Range: -30°C To 60°C Mechanical Characteristics Bulk Cable Weight: 48 kg/km Max. Pull Tension: 79 N Min. Bend Radius During Installation: 57 mm Min Bend Radius During Operation: 29 mm Standards ISO/IEC Compliance: ISO/IEC 11801-1 CPR Euroclass: Dca-s2,d1,a1 CENELEC Compliance: EN 50173-1 Data Category: Category 6A ANSI Compliance: ANSI/TIA 568.2-D (2018) IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 Applicable Environmental and Other Programs Environmental Space: Indoor – Euroclass Dca EU RoHS Compliance Date (yyyy-mm-dd): 2013-07-26 Flammability, LS0H, Toxicity Testing IEC Flammability: IEC 60332-1-2 Burning Load: 515 kJ/m IEC 60754-1 – Halogen Amount: Zero IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 μS/mm IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3 IEC 61034-2 – Smoke Density Min. Transmittance: 60% Part Number Variants Item # Color Put-Up Type Length EAN 1685ENH.00500 Gray, RAL 7032 Reel 500 m 8719605003256 1685ENH.00600 Gray, RAL 7032 Reel 600 m 8719605003263 1685ENH.001000 Gray, RAL 7032 Reel 1,000 m 8719605003249 1685ENH.03500 Purple Reel 500 m 8719605003287 1685ENH.031000 Purple Reel 1,000 m 8719605003270 1685ENH.04500 Yellow Reel 500 m 8719605167781
