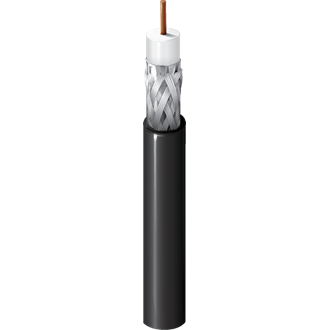

Belden 1505A Coaxial Video Cable

Loading...

Belden 1505A Coaxial Video Cable

Categories: , , ,
Quantity

5000, 10000, 100000
Colour

White, Black, Natural, Neon Pink, Neon Green, Neon Orange, Neon Yellow, Neon Blue, Red, Light Blue

Shop with confidence

Description Specifications Product Overview Suitable Applications Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p Construction Details RG Type 59 Conductor AWG Stranding Nom. Diameter Material 20 Solid 0.032 in BC – Bare Copper Insulation Material Nom. Diameter PE – Polyethylene (Foam) 0.145 in Outer Shield Material Layer Outer Shield Type Material Material Trade Name Coverage 1 Tape Tri-Laminate (Alum Poly Alum) Duofoil® 100% 2 Braid Tinned Copper (TC) 95% Outer Jacket Material Material Nom. Diameter PVC – Polyvinyl Chloride 0.233 in Electrical Characteristics Return Loss Frequency [MHz] Min. Return Loss [dB] 5 – 1600 MHz 23 dB 1600 – 4500 MHz 21 dB 4500 – 6000 MHz 15 dB Attenuation Frequency Nom. Attenuation [dB/100ft] 1 MHz 0.3 dB/100ft 3.58 MHz 0.6 dB/100ft 5 MHz 0.63 dB/100ft 6 MHz 0.69 dB/100ft 7 MHz 0.74 dB/100ft 10 MHz 0.9 dB/100ft 12 MHz 0.91 dB/100ft 25 MHz 1.3 dB/100ft 67.5 MHz 2.05 dB/100ft 71.5 MHz 2.1 dB/100ft 88.5 MHz 2.2 dB/100ft 100 MHz 2.3 dB/100ft 135 MHz 2.7 dB/100ft 143 MHz 2.8 dB/100ft 180 MHz 3.1 dB/100ft 270 MHz 3.8 dB/100ft 360 MHz 4.4 dB/100ft 540 MHz 5.5 dB/100ft 720 MHz 6.4 dB/100ft 750 MHz 6.5 dB/100ft 1000 MHz 7.6 dB/100ft 1500 MHz 9.5 dB/100ft 2000 MHz 11.2 dB/100ft 2250 MHz 11.9 dB/100ft 3000 MHz 14.0 dB/100ft 4500 MHz 17.5 dB/100ft 6000 MHz 21.1 dB/100ft Electricals Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Impedence Nom. Velocity 10 Ohm/1000ft 3.8 Ohm/1000ft 16.3 pF/ft 75 Ohm 82% Voltage UL Voltage Rating 300 V (CMR, CMG) Mechanical Characteristics Temperature UL Rating Operating 60°C -20°C to 75°C Bend Radius Installation Min. 2.3 in Bulk Cable Weight 31 lbs/1000ft Max. Pull Tension 52 lbs Standards and Compliance Environmental Suitability Indoor/Outdoor, Indoor, UV Resistance Sustainability CA Prop 65 Flammability / Fire Resistance UL1666 Vertical Shaft, FT4 NEC / UL Compliance CMR CEC / C(UL) Compliance CMG European Directive Compliance EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) APAC Compliance China RoHS II (GB/T 26572-2011) Plenum Number 1506A
